Green Formaldehyde & Resins (PF, UF)

Methanol to formaldehyde and its downstream UF and PF resins

Feedstocks
e-Methanol or fossil methanol (for formaldehyde)Green urea and formaldehyde (for UF resin)Phenol and formaldehyde (for PF resin)
Products
Green formaldehyde or formaldehyde (depending on the feedstock source)UF resin (urea-formaldehyde resin)PF resin (phenol-formaldehyde resin)
Maturity
Commercial
Green Formaldehyde & Resins (PF, UF)

Petron offers technology for methanol to formaldehyde and its downstream products for industrial applications. Methanol can be from fossil or bio sources such as e-methanol.

Petron’s solution & differentiators

Our highly efficient process synthesizes green formaldehyde by utilizing e-Methanol (produced from biogenic CO₂ and green H₂ through our strategic technology alliance) alongside pure oxygen sourced from an integrated Air Separation Unit (ASU). Designed for modern transition economies, our technology is fully feedstock-flexible and equally engineered to process conventional fossil-sourced methanol.

Downstream from the core formaldehyde block, Petron licenses proprietary production processes for both Urea-Formaldehyde (UF) and Phenol-Formaldehyde (PF) resins. These technologies seamlessly combine your formaldehyde stream with Green Urea or phenol to deliver high-performance, low-carbon polymer binders tailored to your market requirements.

Applicable feedstocks & products

Sustainable & conventional feedstocks

  • Primary alcohol feed: e-Methanol (sourced via biogenic CO₂ and green H₂) or conventional, fossil-sourced industrial methanol.
  • Oxidant stream: high-purity gaseous oxygen (O₂) integrated from an on-site Air Separation Unit (ASU).
  • Downstream co-reactants: Green Urea grains or industrial-grade liquid phenol.

High-performance finished products

  • Green formaldehyde solution: premium, high-strength aqueous formaldehyde (CH₂O) optimized for immediate downstream synthesis or merchant gas-liquid sales.
  • Urea-Formaldehyde (UF) resins: high-efficiency, ultra-low emission liquid adhesive binders engineered specifically for interior-grade MDF, particleboard, and wood-panel composites.
  • Phenol-Formaldehyde (PF) resins: high-durability, moisture-resistant Resole polymer binders designed for exterior-grade structural lumber, OSB, and high-heat laminates.

Commercial maturity

Commercially deployable and fully integrated with the e-methanol and green urea processes upstream.

Full technical brief in preparation with the Petron technology team.

Discuss this technology

Request a technical brief or open a licensing / JV conversation to evaluate your case with our process team.

How it works

Process block diagrams

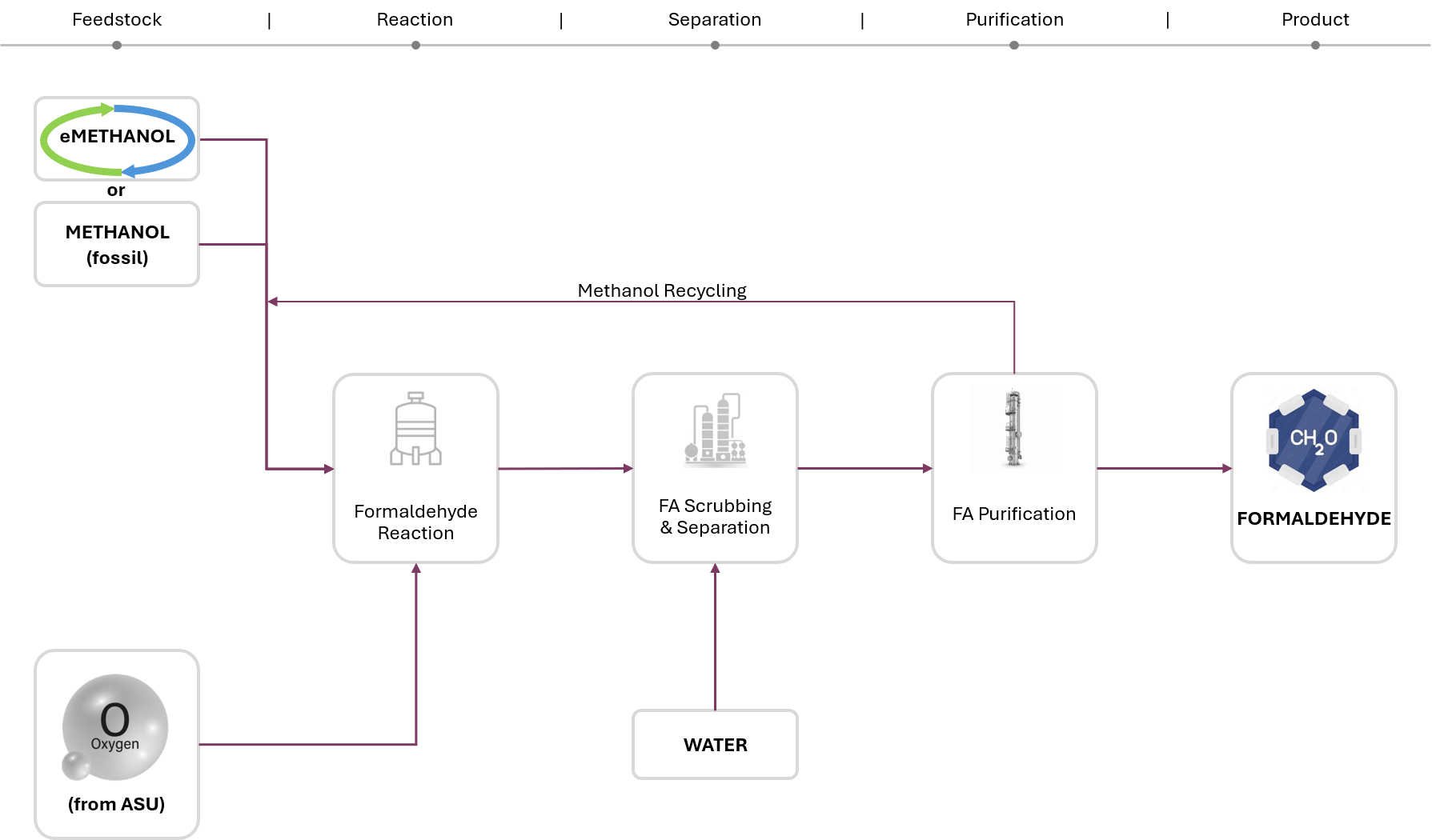

Methanol to formaldehyde process: eMethanol or fossil methanol and oxygen from an air separation unit through formaldehyde reaction, scrubbing and separation with water, and purification to formaldehyde, with methanol recycling back to the feed.
Fig. 01 Methanol to formaldehyde

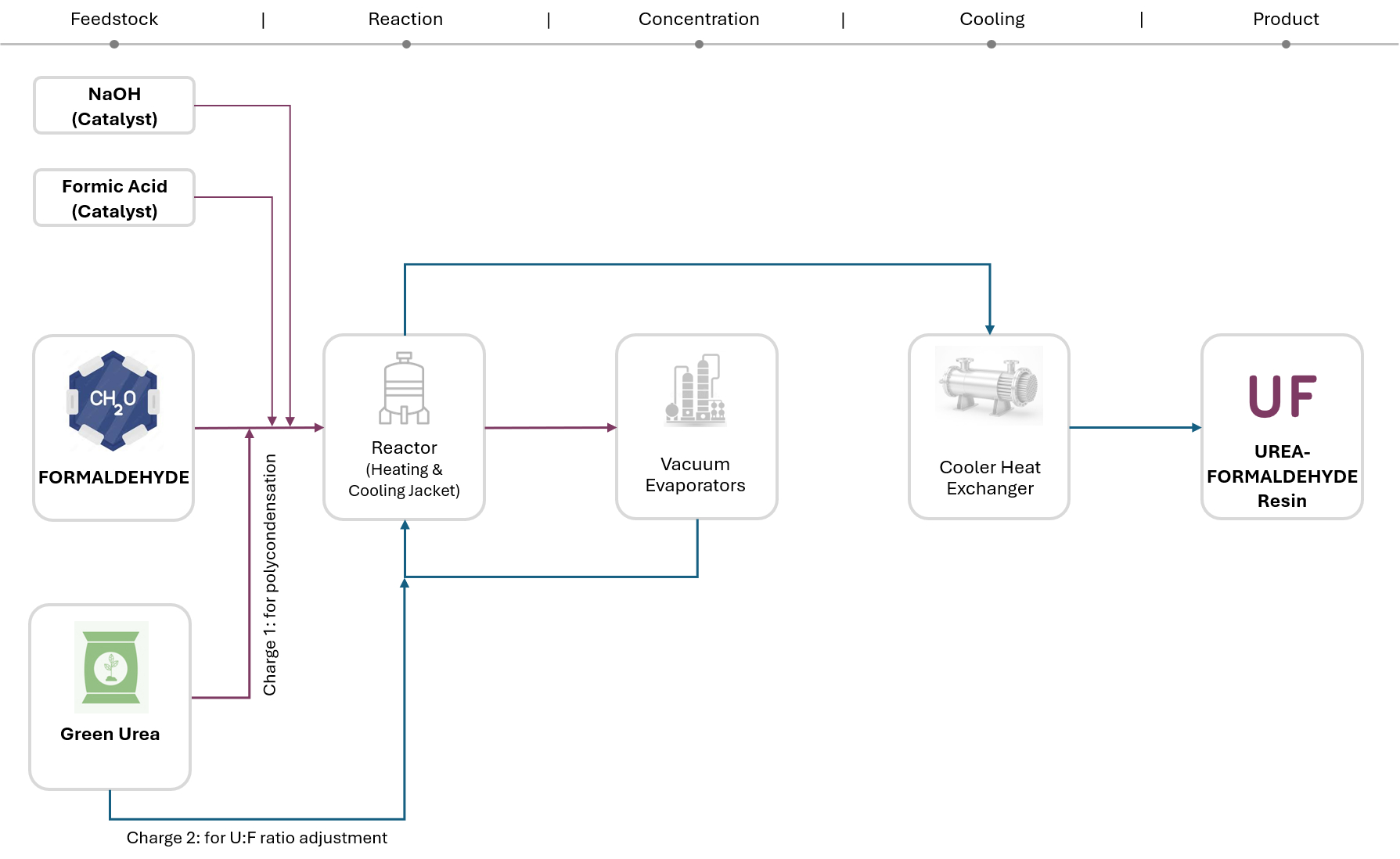

UF resin process: formaldehyde and green urea with NaOH and formic acid catalysts charged to a jacketed reactor for polycondensation, then vacuum evaporators and a cooler heat exchanger to urea-formaldehyde resin, with a second urea charge for U:F ratio adjustment.
Fig. 02 Formaldehyde and green urea to UF resin

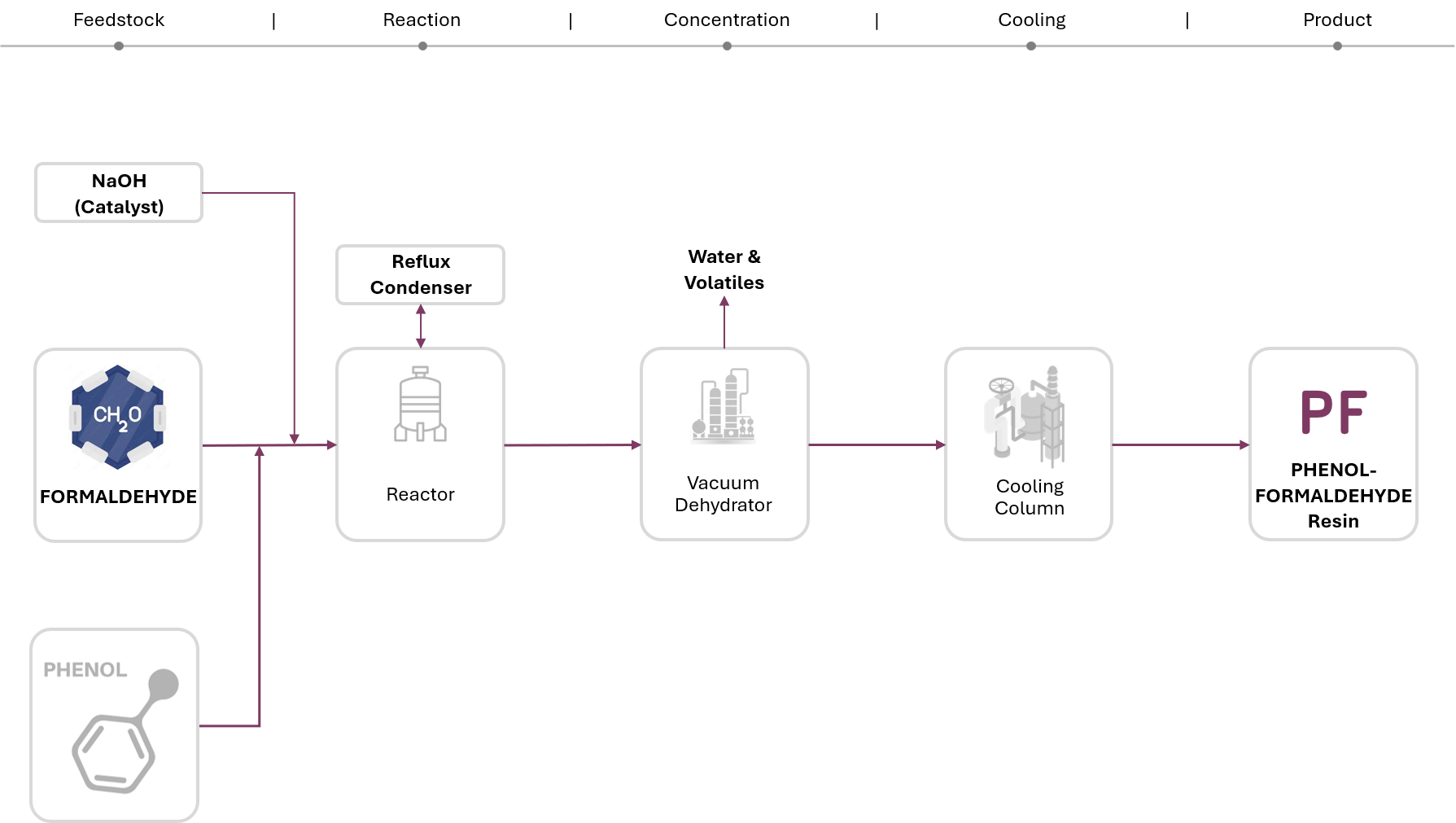

PF resin process: formaldehyde and phenol with NaOH catalyst through a reactor with reflux condenser, a vacuum dehydrator removing water and volatiles, and a cooling column to phenol-formaldehyde resin.
Fig. 03 Formaldehyde and phenol to PF resin
